Emergency Lighting

Product Information

The Escape Slide Lighting System and associated BAS Power Units is an emergency lighting system that provides illumination and directional guidance for evacuees along the escape slide surface and for the landing area where ground contact is made.

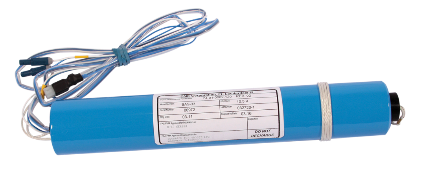

The BAS Power Unit provides power to the lighting assemblies after the activation switch pin has been automatically pulled during slide/raft deployment.

Features

• Automatic activation
• Independently powered
• Multiple configurations
• Test without deployment



Ordering Information

Description	Part Number
Lamp Harness Lighting Assemblies	P2-01-0035-xxx
*BAS Power Units	P4-01-xxxx
TU-14 Test Unit	P7-01-0024

*See data sheet for specific part numbers.



Certification / Compliances

• TSO-C69

Product Information

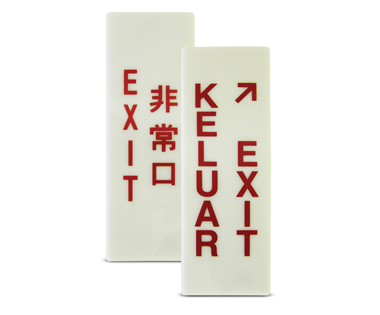

The emergency exit indicator signs are installed near aircraft exit doors on most Boeing aircraft platforms.  PMA for exit indicator sign series 702409-xxxx.

Features

• Offers cost savings over OEM parts, with same form, fit, and function
• Over 50 language options available.
• Single-language or dual-language lens cover options available.

Specifications

• Operating voltage: 5 VDC nominal
• Operating current: 0.35A max @ 5 VDC
• Base color: translucent white
• Dimensions: 5.0 in L x 1.5 in W x 0.5 in H

Ordering Information

Description	Part Number
Exit Indicator Assembly	702409DME-xxxx
Lens Assembly	207377DME-xxxx
Base Assembly	207330DME



Certification / Compliances

• FAA-PMA

Product Information

In case of a ditching or a controlled emergency landing over water with smoke development and/or blackout, Astronics Helicopter Emergency Egress Lighting (HEEL) system provides valuable visual clues to identify the emergency exits during ditching. The Helicopter Emergency Egress Lighting (HEEL) system can be activated by a variety of means including loss of A/C power, water, impact or other. Following a ditching or crash, the system identifies the emergency escape hatches, pushout windows and emergency exits by illuminating their perimeter as required by MIL-85676(AS), JAR OPS 3.837(a)(4) and CAA Airworthiness Notice 27.


Description

• 28 VDC input system
• Egress lights around the perimeter of all emergency exits
• Marker lights for door handles, pull straps and other exit activation means
• Controlled through emergency lighting ON/ARM/OFF switch in cockpit
• System can be configured to operate in parallel or as part of the emergency lighting system
• Battery back-up trickle charged off aircraft power in normal operation
• Longer than 4 years battery life with 18 month check
• Watertight up to 50 feet for 20 minutes
• RTCA/DO-160 Tested

A typical HEEL system consists of a number of electroluminescent lamp encapsulated in fiberglass, an extremely rugged and durable construction, emergency sensors (immersion, impact, etc.) and a DC/AC power supply. The HEEL system can be used independently or as part of the Emergency Lighting and Emergency Exit Lighting system.  HEEL meets the requirements set forth in JAR-OPS 3 and fully complies with the United Kingdom Civil Aviation Agency Airworthiness Information Leaflet AD/1L/0124/1-4, dated 16 December 1987, and has obtained CAA Accessory Approval under CAA Approval Number E15499. HEEL is designed to meet all pertinent aviation regulations and meets the airworthiness requirements of RTCA/DO-160.

HEEL Design Concept The ultimate test of any emergency system is the ability to reliably perform in a catastrophic situation. Since an EL lamp is solid state, it is the ideal technology to use as the basis for such a system since it will survive a crash without breaking. In a smoke-filled environment, the area light of the EL lamp is far more visible than a point source of light.
